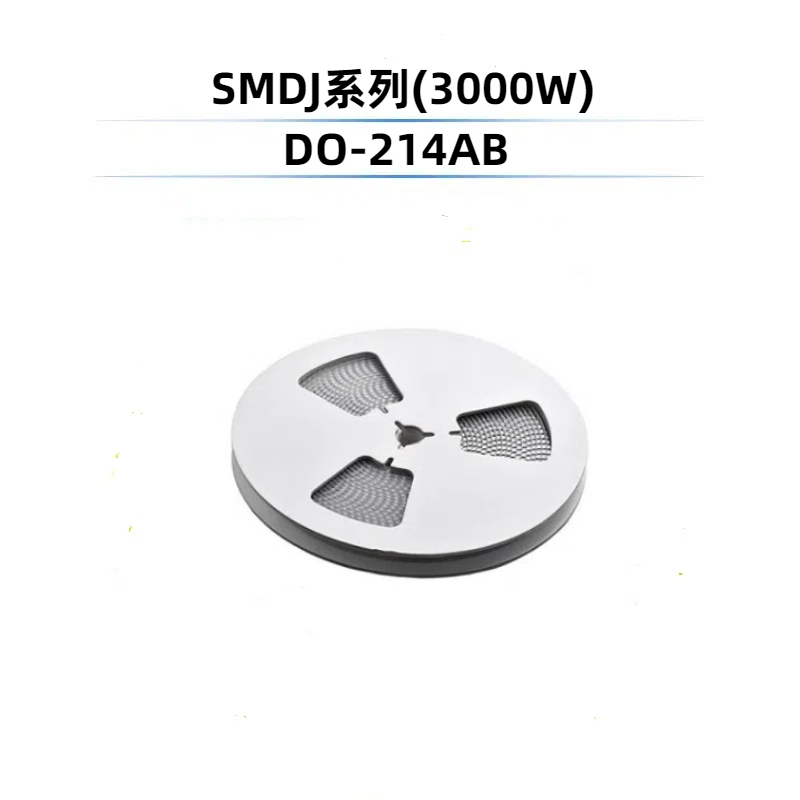

产品特征介绍

1、兼容工業標準的DO-214AB封裝

2、為表麵安裝應用優化電路板空間

3、低泄漏‘

4、單向和雙向單元

5、玻璃鈍化結

6、产品优点：快速响应时间、低漏电流、大瞬态功率、击穿电压偏差小、高可靠性、箝位电压易控制、小体积

7、环保要求：无铅镀雾锡、无卤化、符合RoHS

;

电话：13534079884/15889645839

1223157337 /2444809124 （需添加QQ为好友）

产品详细说明 :

Part Number		Reverse	Breakdown Voltage @IT		Test	Maximum	Peak	Reverse	DATA
		Stand-Off			Current	Clamping	Pulse	Leakage
		Voltage				Voltage	Current	@VRWM	SHEET
						@IPP
(UNI)	(BI)	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(μA)
(UNI)	(BI)	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(μA)
SMDJ5.0A	SMDJ5.0CA	5	6.40	7.25	10	9.20	326.10	800
SMDJ6.0A	SMDJ6.0CA	6	6.67	7.67	10	10.30	291.30	800
SMDJ6.5A	SMDJ6.5CA	6.5	7.22	8.30	10	11.20	267.90	500
SMDJ7.0A	SMDJ7.0CA	7	7.78	8.95	10	12.00	250.00	200
SMDJ7.5A	SMDJ7.5CA	7.5	8.33	9.58	1	12.90	232.60	100
SMDJ8.0A	SMDJ8.0CA	8	8.89	10.23	1	13.60	220.60	50
SMDJ8.5A	SMDJ8.5CA	8.5	9.44	10.82	1	14.40	208.30	20
SMDJ9.0A	SMDJ9.0CA	9	10.00	11.50	1	15.40	194.80	10
SMDJ10A	SMDJ10CA	10	11.10	12.80	1	17.00	176.50	5
SMDJ11A	SMDJ11CA	11	12.20	14.00	1	18.20	164.80	2
SMDJ12A	SMDJ12CA	12	13.30	15.30	1	19.90	150.80	2
SMDJ13A	SMDJ13CA	13	14.40	16.50	1	21.50	139.50	2
SMDJ14A	SMDJ14CA	14	15.60	17.90	1	23.20	129.30	2
SMDJ15A	SMDJ15CA	15	16.70	19.20	1	24.40	123.00	2
SMDJ16A	SMDJ16CA	16	17.80	20.50	1	26.00	115.40	2
SMDJ17A	SMDJ17CA	17	18.90	21.70	1	27.60	108.70	2
SMDJ18A	SMDJ18CA	18	20.00	23.30	1	29.20	102.70	2
SMDJ20A	SMDJ20CA	20	22.20	25.50	1	32.40	92.60	2
SMDJ22A	SMDJ22CA	22	24.40	28.00	1	35.50	84.50	2
SMDJ24A	SMDJ24CA	24	26.70	30.70	1	38.90	77.10	2
SMDJ26A	SMDJ26CA	26	28.90	33.20	1	42.10	71.30	2
SMDJ28A	SMDJ28CA	28	31.10	35.80	1	45.20	66.10	2
SMDJ30A	SMDJ30CA	30	33.30	38.30	1	48.40	62.00	2
SMDJ33A	SMDJ33CA	33	36.70	42.20	1	53.30	56.30	2
SMDJ36A	SMDJ36CA	36	40.00	46.00	1	58.10	51.60	2
SMDJ40A	SMDJ40CA	40	44.40	51.10	1	64.50	46.50	2
SMDJ43A	SMDJ43CA	43	47.80	54.90	1	69.40	43.20	2
SMDJ45A	SMDJ45CA	45	50.00	57.50	1	72.70	41.30	2
SMDJ48A	SMDJ48CA	48	53.30	61.30	1	77.40	38.80	2
SMDJ51A	SMDJ51CA	51	56.70	65.20	1	82.40	36.40	2
SMDJ54A	SMDJ54CA	54	60.00	69.00	1	87.10	34.40	2
SMDJ58A	SMDJ58CA	58	64.40	74.10	1	93.60	32.10	2
SMDJ60A	SMDJ60CA	60	66.70	76.70	1	96.80	31.00	2
SMDJ64A	SMDJ64CA	64	71.10	81.80	1	103.00	29.10	2
SMDJ70A	SMDJ70CA	70	77.80	89.50	1	113.00	26.50	2
SMDJ75A	SMDJ75CA	75	95.80	95.80	1	121.00	24.80	2
SMDJ78A	SMDJ78CA	78	99.70	99.70	1	126.00	23.80	2
SMDJ85A	SMDJ85CA	85	108.20	104.00	1	137.00	21.90	2
SMDJ90A	SMDJ90CA	90	115.50	111.00	1	146.00	20.50	2
SMDJ100A	SMDJ100CA	100	128.00	123.00	1	162.00	18.50	2
SMDJ110A	SMDJ110CA	110	140.50	135.00	1	177.00	16.90	2
SMDJ120A	SMDJ120CA	120	153.00	147.00	1	193.00	15.50	2
SMDJ130A	SMDJ130CA	130	165.50	159.00	1	209.00	14.40	2
SMDJ150A	SMDJ150CA	150	192.50	185.00	1	243.00	12.30	2
SMDJ160A	SMDJ160CA	160	205.00	197.00	1	259.00	11.60	2
SMDJ170A	SMDJ170CA	170	217.50	209.00	1	275.00	10.90	2

;
