瞬态抑制二极管
产品特征：

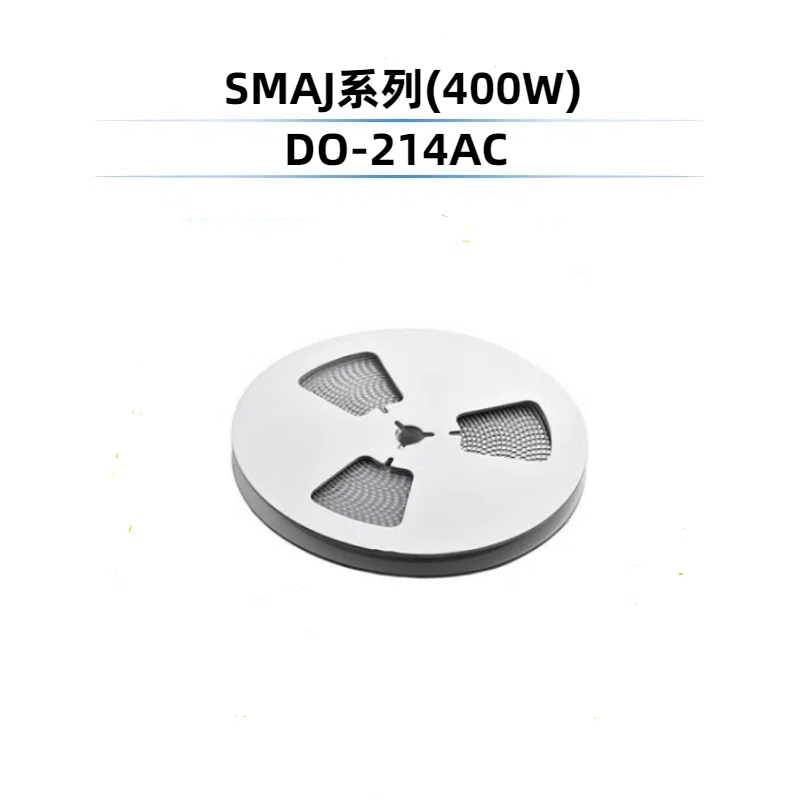

1、兼容工業標準的DO-214AC封裝
2、為表麵安裝應用優化電路板空間
3、低泄漏
4、單向和雙向單元
5、玻璃鈍化結
6、产品优点：快速响应时间、低漏电流、大瞬态功率、击穿电压偏差小、高可靠性、箝位电压易控制、小体积
7、环保要求：无铅镀雾锡、无卤化、符合RoHS
2444809124 / 1223157337（需添加QQ号为好友）
服务热线：13534079884/15889645839
Product Name
Vrwm(V)
Vbr (V) @ It (min)
Vbr (V) @ It (max)
It (mA)
Vc (V) @ Ipp
Ipp (A)
Ir (μA) @ Vrwm
Package
Data Sheet
All
10.0
100.0
11.0
110.0
12.0
120.0
13.0
130.0
14.0
140.0
15.0
150.0
16.0
160.0
17.0
170.0
18.0
180.0
19.0
190.0
20.0
200.0
22.0
220.0
24.0
250.0
26.0
28.0
3.3
30.0
300.0
33.0
350.0
36.0
40.0
400.0
43.0
440.0
45.0
48.0
5.0
51.0
54.0
58.0
6.0
6.5
60.0
64.0
7.0
7.5
70.0
75.0
78.0
8.0
8.5
80.0
85.0
9.0
90.0
All
10.00
100.00
11.10
111.00
12.20
122.00
13.30
133.00
14.40
144.00
15.60
155.00
16.70
167.00
17.80
178.00
18.90
189.00
20.00
201.00
21.10
211.00
22.20
224.00
24.40
246.00
26.70
279.00
28.90
31.10
33.30
335.00
36.70
391.00
40.00
44.40
447.00
47.80
492.00
5.20
50.00
53.30
56.70
6.40
6.67
60.00
64.40
66.70
7.22
7.78
71.10
77.80
8.33
8.89
83.30
86.70
88.80
9.44
94.40
All
10.40
104.00
11.10
111.00
12.30
123.00
13.50
135.00
14.70
147.00
15.90
159.00
17.20
171.00
18.50
185.00
19.70
197.00
20.90
209.00
22.10
220.00
23.30
232.00
24.50
247.00
26.90
272.00
29.50
309.00
31.90
34.40
36.80
371.00
40.60
432.00
44.20
49.10
494.00
52.80
543.00
55.30
58.90
6.00
62.70
66.30
7.00
7.37
7.98
71.20
73.70
78.60
8.60
86.00
9.21
9.83
92.10
95.80
97.60
All
1
10
All
10.3
103.0
11.2
113.0
12.0
12.9
121.0
126.0
129.6
13.6
137.0
14.4
146.0
15.4
162.0
17.0
177.0
18.2
19.9
193.0
209.0
21.5
226.8
23.2
24.4
243.0
259.0
26.0
27.6
275.0
29.2
291.6
30.8
307.8
32.4
324.0
35.5
356.0
38.9
405.0
42.1
45.4
48.4
486.0
53.3
567.0
58.1
64.5
648.0
69.4
713.0
72.7
77.4
8.0
82.4
87.1
9.2
93.6
96.8
All
0.56
0.62
0.71
0.82
0.99
1.12
1.23
1.30
1.37
1.45
1.54
1.65
1.76
1.91
10.28
11.27
12.35
13.00
13.70
14.49
15.38
16.39
17.24
18.60
2.07
2.26
2.47
2.74
2.92
20.10
21.98
23.53
25.97
27.78
29.41
3.09
3.17
3.31
3.54
3.88
31.01
33.33
35.71
38.83
4.13
4.27
4.59
4.85
43.48
43.80
5.17
5.50
5.76
6.20
6.88
7.50
8.26
8.81
9.50
All
10
100
200
5
50
500
600
800
All
SMAJ
All
SMAJ3.3A/CA
3.3
5.20
6.00
10
8.0
43.80
600
SMAJ
SMAJ5.0A/CA
5.0
6.40
7.00
10
9.2
43.48
800
SMAJ
SMAJ6.0A/CA
6.0
6.67
7.37
10
10.3
38.83
800
SMAJ
SMAJ6.5A/CA
6.5
7.22
7.98
10
11.2
35.71
500
SMAJ
SMAJ7.0A/CA
7.0
7.78
8.60
10
12.0
33.33
200
SMAJ
SMAJ7.5A/CA
7.5
8.33
9.21
1
12.9
31.01
100
SMAJ
SMAJ8.0A/CA
8.0
8.89
9.83
1
13.6
29.41
50
SMAJ
SMAJ8.5A/CA
8.5
9.44
10.40
1
14.4
27.78
10
SMAJ
SMAJ9.0A/CA
9.0
10.00
11.10
1
15.4
25.97
5
SMAJ
SMAJ10A/CA
10.0
11.10
12.30
1
17.0
23.53
5
SMAJ
SMAJ11A/CA
11.0
12.20
13.50
1
18.2
21.98
5
SMAJ
SMAJ12A/CA
12.0
13.30
14.70
1
19.9
20.10
5
SMAJ
SMAJ13A/CA
13.0
14.40
15.90
1
21.5
18.60
5
SMAJ
SMAJ14A/CA
14.0
15.60
17.20
1
23.2
17.24
5
SMAJ
SMAJ15A/CA
15.0
16.70
18.50
1
24.4
16.39
5
SMAJ
SMAJ16A/CA
16.0
17.80
19.70
1
26.0
15.38
5
SMAJ
SMAJ17A/CA
17.0
18.90
20.90
1
27.6
14.49
5
SMAJ
SMAJ18A/CA
18.0
20.00
22.10
1
29.2
13.70
5
SMAJ
SMAJ19A/CA
19.0
21.10
23.30
1
30.8
13.00
5
SMAJ
SMAJ20A/CA
20.0
22.20
24.50
1
32.4
12.35
5
SMAJ
SMAJ22A/CA
22.0
24.40
26.90
1
35.5
11.27
5
SMAJ
SMAJ24A/CA
24.0
26.70
29.50
1
38.9
10.28
5
SMAJ
SMAJ26A/CA
26.0
28.90
31.90
1
42.1
9.50
5
SMAJ
SMAJ28A/CA
28.0
31.10
34.40
1
45.4
8.81
5
SMAJ
SMAJ30A/CA
30.0
33.30
36.80
1
48.4
8.26
5
SMAJ
SMAJ33A/CA
33.0
36.70
40.60
1
53.3
7.50
5
SMAJ
SMAJ36A/CA
36.0
40.00
44.20
1
58.1
6.88
5
SMAJ
SMAJ40A/CA
40.0
44.40
49.10
1
64.5
6.20
5
SMAJ
SMAJ43A/CA
43.0
47.80
52.80
1
69.4
5.76
5
SMAJ
SMAJ45A/CA
45.0
50.00
55.30
1
72.7
5.50
5
SMAJ
SMAJ48A/CA
48.0
53.30
58.90
1
77.4
5.17
5
SMAJ
SMAJ51A/CA
51.0
56.70
62.70
1
82.4
4.85
5
SMAJ
SMAJ54A/CA
54.0
60.00
66.30
1
87.1
4.59
5
SMAJ
SMAJ58A/CA
58.0
64.40
71.20
1
93.6
4.27
5
SMAJ
SMAJ60A/CA
60.0
66.70
73.70
1
96.8
4.13
5
SMAJ
SMAJ64A/CA
64.0
71.10
78.60
1
103.0
3.88
5
SMAJ
SMAJ70A/CA
70.0
77.80
86.00
1
113.0
3.54
5
SMAJ
SMAJ75A/CA
75.0
83.30
92.10
1
121.0
3.31
5
SMAJ
SMAJ78A/CA
78.0
86.70
95.80
1
126.0
3.17
5
SMAJ
SMAJ80A/CA
80.0
88.80
97.60
1
129.6
3.09
5
SMAJ
SMAJ85A/CA
85.0
94.40
104.00
1
137.0
2.92
5
SMAJ
SMAJ90A/CA
90.0
100.00
111.00
1
146.0
2.74
5
SMAJ
SMAJ100A/CA
100.0
111.00
123.00
1
162.0
2.47
5
SMAJ
SMAJ110A/CA
110.0
122.00
135.00
1
177.0
2.26
5
SMAJ
SMAJ120A/CA
120.0
133.00
147.00
1
193.0
2.07
5
SMAJ
SMAJ130A/CA
130.0
144.00
159.00
1
209.0
1.91
5
SMAJ
SMAJ140A/CA
140.0
155.00
171.00
1
226.8
1.76
5
SMAJ
SMAJ150A/CA
150.0
167.00
185.00
1
243.0
1.65
5
SMAJ
SMAJ160A/CA
160.0
178.00
197.00
1
259.0
1.54
5
SMAJ
SMAJ170A/CA
170.0
189.00
209.00
1
275.0
1.45
5
SMAJ
SMAJ180A/CA
180.0
201.00
220.00
1
291.6
1.37
5
SMAJ
SMAJ190A/CA
190.0
211.00
232.00
1
307.8
1.30
5
SMAJ
SMAJ200A/CA
200.0
224.00
247.00
1
324.0
1.23
5
SMAJ
SMAJ220A/CA
220.0
246.00
272.00
1
356.0
1.12
5
SMAJ
SMAJ250A/CA
250.0
279.00
309.00
1
405.0
0.99
5
SMAJ
SMAJ300A/CA
300.0
335.00
371.00
1
486.0
0.82
5
SMAJ
SMAJ350A/CA
350.0
391.00
432.00
1
567.0
0.71
5
SMAJ
SMAJ400A/CA
400.0
447.00
494.00
1
648.0
0.62
5
SMAJ
SMAJ440A/CA
440.0
492.00
543.00
1
713.0
0.56
5
SMAJ
