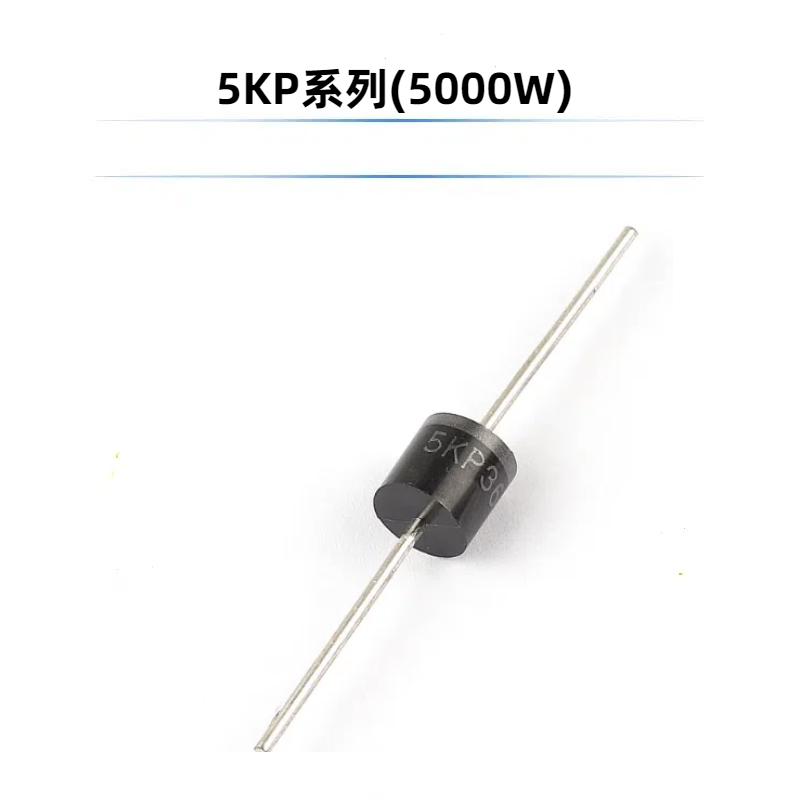

产品特征介绍

1、浪涌额定功率：5000Watt

2、封装形式：标准R-6封装

3、环保要求：符合RoHS、Reach等环保要求；

4、产品优点：响应时间快、瞬态功率大、漏电流低、击穿电压偏差、箝位电压较易控制、无损坏极限；

5、包装方式：盒装 500PCS/盒

;

电话：13534079884/15889645839

1223157337 /2444809124 （需添加QQ为好友）

产品详细说明 :

5KP DEVICES	REVERSE STAND-OFF VOLTAGE VRWM(v)	BREAKDOWN VOLTAGE Min.@IT VBR Min.(V)	BREAKDOWN VOLTAGE Max.@IT VBR Max.(V)	TEST CURRENT IT(mA)	MAXIMUM CLAMPING VOLTAGE @Ipp VC(V)	PEAK PULSE CURRENT Ipp(A)	REVERSE LEAKAGE @VRWM IR(uA)	Data Sheet
5KP DEVICES	REVERSE STAND-OFF VOLTAGE VRWM(v)	BREAKDOWN VOLTAGE Min.@IT VBR Min.(V)	BREAKDOWN VOLTAGE Max.@IT VBR Max.(V)	TEST CURRENT IT(mA)	MAXIMUM CLAMPING VOLTAGE @Ipp VC(V)	PEAK PULSE CURRENT Ipp(A)	REVERSE LEAKAGE @VRWM IR(uA)	Data Sheet
5KP5.0A/CA	5.00	6.40	7.00	50	9.20	554.30	5000
5KP6.0A/CA	6.00	6.67	7.37	50	10.30	495.10	5000
5KP6.5A/CA	6.50	7.22	7.98	50	11.20	455.40	2000
5KP7.0A/CA	7.0.	7.78	8.60	50	12.00	425.00	1000
5KP7.5A/CA	7.50	8.33	9.83	5	12.90	395.30	250
5KP8.0A/CA	8.00	8.89	9.21	5	13.60	375.00	150
5KP8.5A/CA	8.50	9.44	10.40	5	14.40	354.20	50
5KP9.0A/CA	9.00	10.00	11.10	5	15.40	331.20	20
5KP10A/CA	10.00	11.10	12.30	5	17.00	300.00	15
5KP11A/CA	11.00	12.20	13.50	5	18.20	280.20	2
5KP12A/CA	12.00	13.30	14.70	5	19.90	256.30	2
5KP13A/CA	13.00	14.40	15.90	5	21.50	237.20	2
5KP14A/CA	14.00	15.60	17.20	5	23.20	219.80	2
5KP15A/CA	15.00	16.70	18.50	5	24.40	209.00	2
5KP16A/CA	16.00	17.80	19.70	5	26.00	196.20	2
5KP17A/CA	17.00	18.90	20.90	5	27.60	184.80	2
5KP18A/CA	18.00	20.00	22.10	5	29.20	174.70	2
5KP20A/CA	20.00	22.20	24.50	5	32.40	157.40	2
5KP22A/CA	22.00	24.00	26.90	5	35.50	143.70	2
5KP24A/CA	24.00	26.70	29.50	5	38.90	131.10	2
5KP26A/CA	26.00	28.90	31.90	5	42.10	121.10	2
5KP28A/CA	28.00	31.10	34.40	5	45.40	112.30	2
5KP30A/CA	30.00	33.30	36.80	5	48.40	105.40	2
5KP33A/CA	33.00	36.70	40.60	5	53.30	95.70	2
5KP36A/CA	36.00	40.00	44.20	5	58.10	87.80	2
5KP40A/CA	40.00	44.40	49.10	5	64.50	79.10	2
5KP43A/CA	43.00	47.80	52.80	5	69.40	73.50	2
5KP45A/CA	45.00	50.00	55.30	5	72.70	70.20	2
5KP48A/CA	48.00	53.30	58.90	5	77.40	65.90	2
5KP51A/CA	51.00	56.70	62.70	5	82.40	61.90	2
5KP54A/CA	54.00	60.00	66.30	5	87.10	58.60	2
5KP58A/CA	58.00	64.40	71.50	5	93.60	54.50	2
5KP60A/CA	60.00	66.70	73.70	5	96.80	52.70	2
5KP64A/CA	64.00	71.10	78.60	5	103.00	49.50	2
5KP70A/CA	70.00	77.80	86.00	5	113.00	45.10	2
5KP75A/CA	75.00	83.30	92.10	5	121.00	42.10	2
5KP78A/CA	78.00	86.70	95.80	5	126.00	40.50	2
5KP85A/CA	85.00	94.40	104.00	5	137.00	37.20	2
5KP90A/CA	90.00	100.00	111.00	5	146.00	34.90	2
5KP100A/CA	100.00	110.00	123.00	5	162.00	31.50	2
5KP110A/CA	110.00	122.00	135.00	5	177.00	28.80	2
5KP120A/CA	120.00	133.00	147.00	5	193.00	26.40	2
5KP130A/CA	130.00	144.00	159.00	5	209.00	24.40	2
5KP150A/CA	150.00	167.00	185.00	5	243.00	21.00	2
5KP160A/CA	160.00	178.00	197.00	5	259.00	19.70	2
5KP170A/CA	170.00	189.00	209.00	5	275.00	18.50	2
5KP180A/CA	180.00	201.00	222.00	5	292.00	17.50	2
5KP190A/CA	190.00	211.00	233.00	5	310.00	16.50	2
5KP200A/CA	200.00	224.00	247.00	5	329.20	15.50	2
5KP210A/CA	210.00	237.00	263.00	5	349.50	14.60	2
5KP220A/CA	220.00	246.00	272.00	5	371.10	13.70	2
5KP250A/CA	250.00	277.00	306.00	5	425.00	12.00	2
