SMF系列（SOD-123F）

SMAJ系列（DO-214AC）

SMBJ系列（DO-214AA）

P6SMB系列（DO-214AA）

SMCJ系列（DO-214AB）

SMDJ系列（DO-214AB）

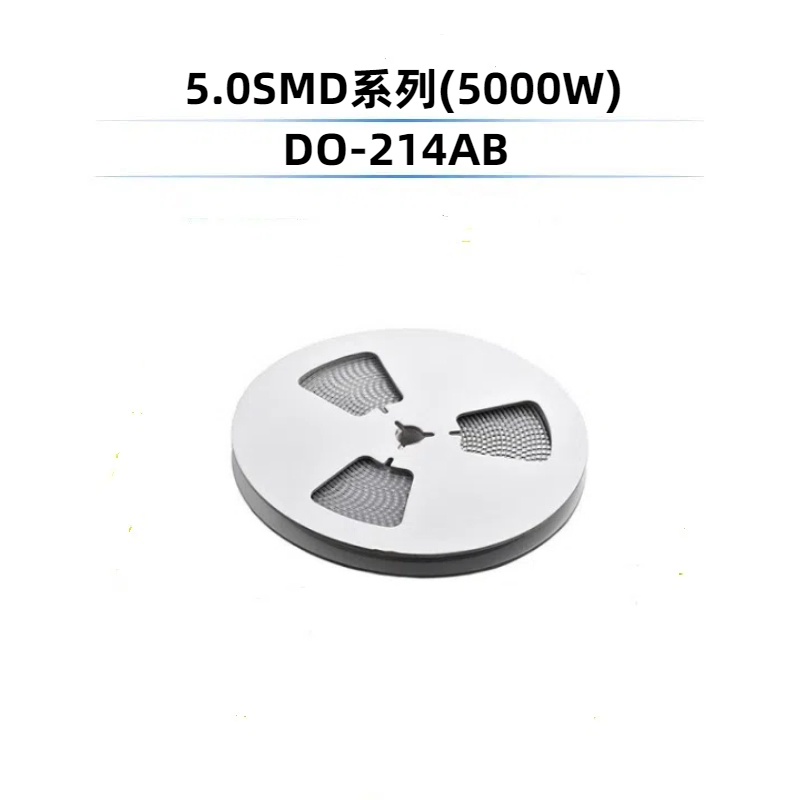

5.0SMD系列（DO-214AB）

SM8S系列（DO-214AB）

产品特征介绍

1、兼容工業標準的DO-214AB封裝

2、為表麵安裝應用優化電路板空間

3、低泄漏‘

4、單向和雙向單元

5、玻璃鈍化結

6、产品优点：快速响应时间、低漏电流、大瞬态功率、击穿电压偏差小、高可靠性、箝位电压易控制、小体积

7、环保要求：无铅镀雾锡、无卤化、符合RoHS

;

电话：13534079884/15889645839

1223157337 /2444809124 （需添加QQ为好友）

产品详细说明 :

Product Name	Vrwm(V)	Vbr (V) @ It (min)	Vbr (V) @ It (max)	It (mA)	Vc (V) @ Ipp	Ipp (A)	Ir (μA) @ Vrwm	Package	Data Sheet

5.0SMDJ11A/CA	11	12.2	13.5	1	18.2	277.47	800	5.0SMDJ
5.0SMDJ12A/CA	12	13.3	14.7	1	19.9	253.77	800	5.0SMDJ
5.0SMDJ13A/CA	13	14.4	15.9	1	21.5	234.88	500	5.0SMDJ
5.0SMDJ14A/CA	14	15.6	17.2	1	23.2	217.67	200	5.0SMDJ
5.0SMDJ15A/CA	15	16.7	18.5	1	24.4	206.97	100	5.0SMDJ
5.0SMDJ16A/CA	16	17.8	19.7	1	26	194.23	50	5.0SMDJ
5.0SMDJ17A/CA	17	18.9	20.9	1	27.6	182.97	20	5.0SMDJ
5.0SMDJ18A/CA	18	20	22.1	1	29.2	172.95	10	5.0SMDJ
5.0SMDJ19A/CA	19	21.1	23.3	1	30.8	164.07	10	5.0SMDJ
5.0SMDJ20A/CA	20	22.2	24.5	1	32.4	155.86	5	5.0SMDJ
5.0SMDJ22A/CA	22	24.4	26.9	1	35.5	142.25	5	5.0SMDJ
5.0SMDJ24A/CA	24	26.7	29.5	1	38.9	129.82	5	5.0SMDJ
5.0SMDJ26A/CA	26	28.9	31.9	1	42.1	119.95	5	5.0SMDJ
5.0SMDJ28A/CA	28	31.1	34.4	1	45.4	111.23	5	5.0SMDJ
5.0SMDJ30A/CA	30	33.3	36.8	1	48.4	104.34	5	5.0SMDJ
5.0SMDJ33A/CA	33	36.7	40.6	1	43.3	94.75	5	5.0SMDJ
5.0SMDJ36A/CA	36	40	44.2	1	58.1	86.92	5	5.0SMDJ
5.0SMDJ43A/CA	43	47.8	52.8	1	69.4	72.77	5	5.0SMDJ
5.0SMDJ40A/CA	40	44.4	49.1	1	64.5	78.29	5	5.0SMDJ
5.0SMDJ45A/CA	45	50	55.3	1	72.7	69.46	5	5.0SMDJ
5.0SMDJ48A/CA	48	53.3	58.9	1	77.4	65.25	5	5.0SMDJ
5.0SMDJ51A/CA	51	56.7	62.7	1	82.4	61.29	5	5.0SMDJ
5.0SMDJ54A/CA	54	60	66.3	1	87.1	57.98	5	5.0SMDJ
5.0SMDJ58A/CA	58	64.4	71.2	1	93.6	53.95	5	5.0SMDJ
5.0SMDJ60A/CA	60	66.7	73.7	1	96.8	52.17	5	5.0SMDJ
5.0SMDJ64A/CA	64	71.1	78.6	1	103	49.03	5	5.0SMDJ
5.0SMDJ70A/CA	70	77.8	86	1	113	44.69	5	5.0SMDJ
5.0SMDJ75A/CA	75	83.3	92.1	1	121	41.74	5	5.0SMDJ
5.0SMDJ78A/CA	78	86.7	95.8	1	126	40.8	5	5.0SMDJ
5.0SMDJ80A/CA	80	88.8	97.6	1	129.6	38.97	5	5.0SMDJ
5.0SMDJ85A/CA	85	94.4	104	1	137	36.86	5	5.0SMDJ
5.0SMDJ90A/CA	90	100	111	1	146	34.59	5	5.0SMDJ
5.0SMDJ100A/CA	100	111	123	1	162	31.17	5	5.0SMDJ
5.0SMDJ110A/CA	110	122	135	1	177	28.53	5	5.0SMDJ
5.0SMDJ120A/CA	120	133	147	1	193	26.17	5	5.0SMDJ
5.0SMDJ130A/CA	130	144	159	1	209	24.16	5	5.0SMDJ
5.0SMDJ140A/CA	140	155	171	1	226.8	22.27	5	5.0SMDJ
5.0SMDJ150A/CA	150	167	185	1	243	20.78	5	5.0SMDJ
5.0SMDJ160A/CA	160	178	197	1	259	19.5	5	5.0SMDJ
5.0SMDJ170A/CA	170	189	209	1	275	18.36	5	5.0SMDJ
5.0SMDJ180A/CA	180	201	220	1	291.6	17.32	5	5.0SMDJ
5.0SMDJ190A/CA	190	211	232	1	307.8	16.41	5	5.0SMDJ
5.0SMDJ200A/CA	200	224	247	1	324	9.26	5	5.0SMDJ
5.0SMDJ220A/CA	220	246	272	1	356	8.43	5	5.0SMDJ
5.0SMDJ250A/CA	250	279	309	1	405	7.41	5	5.0SMDJ
5.0SMDJ300A/CA	300	335	371	1	486	6.17	5	5.0SMDJ
5.0SMDJ350A/CA	350	391	432	1	567	5.29	5	5.0SMDJ
5.0SMDJ400A/CA	400	447	494	1	648	4.63	5	5.0SMDJ
5.0SMDJ440A/CA	440	492	543	1	713	4.21	5	5.0SMDJ

;
