瞬态抑制二极管

产品特征：

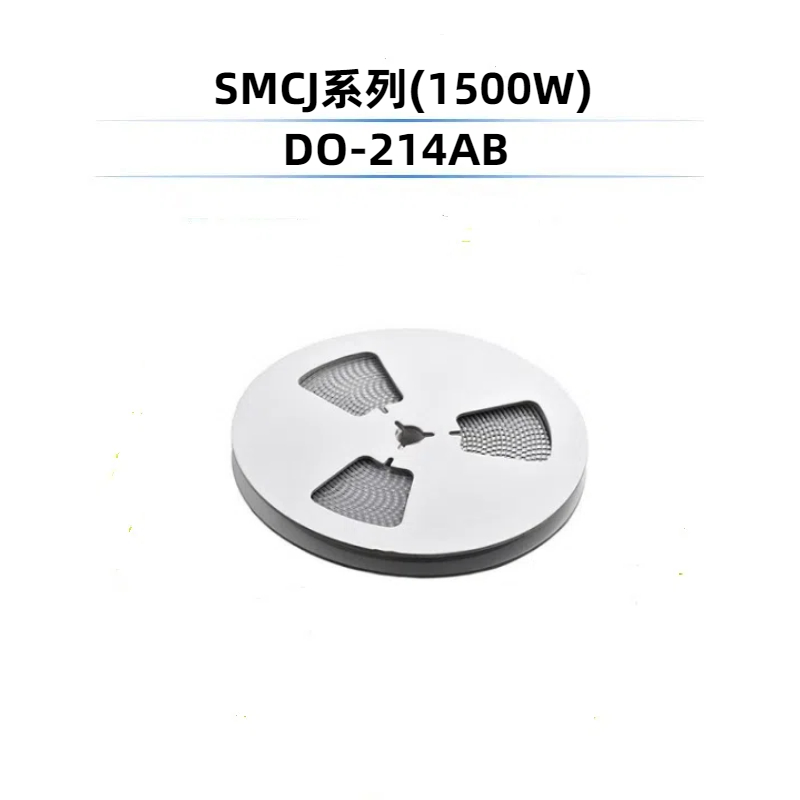

1、兼容工業標準的DO-214AB封裝

2、為表麵安裝應用優化電路板空間

3、低泄漏

4、單向和雙向單元

5、玻璃鈍化結

6、产品优点：快速响应时间、低漏电流、大瞬态功率、击穿电压偏差小、高可靠性、箝位电压易控制、小体积

7、环保要求：无铅镀雾锡、无卤化、符合RoHS

2444809124 / 1223157337（需添加QQ号为好友）

服务热线：13534079884/15889645839

Part Number		Reverse	Breakdown Voltage @IT		Test	Maximum	Peak	Reverse	DATA
		Stand-Off			Current	Clamping	Pulse	Leakage
		Voltage				Voltage	Current	@VRWM	SHEET
						@IPP
(UNI)	(BI)	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(μA)
(UNI)	(BI)	VRWM(V)	VBR MIN.(V)	VBR MAX.(V)	IT(mA)	VC(V)	IPP(A)	IR(μA)
SMCJ5.0A	SMCJ5.0CA	5	6.40	7.25	10	9.20	163.00	800
SMCJ6.0A	SMCJ6.0CA	6	6.67	7.67	10	10.30	145.70	800
SMCJ6.5A	SMCJ6.5CA	6.5	7.22	8.30	10	11.20	134.00	500
SMCJ7.0A	SMCJ7.0CA	7	7.78	8.95	10	12.00	125.00	200
SMCJ7.5A	SMCJ7.5CA	7.5	8.33	9.58	1	12.90	116.30	100
SMCJ8.0A	SMCJ8.0CA	8	8.89	10.23	1	13.60	110.30	50
SMCJ8.5A	SMCJ8.5CA	8.5	9.44	10.82	1	14.40	104.20	20
SMCJ9.0A	SMCJ9.0CA	9	10.00	11.50	1	15.40	97.40	10
SMCJ10A	SMCJ10CA	10	11.10	12.80	1	17.00	88.30	5
SMCJ11A	SMCJ11CA	11	12.20	14.00	1	18.20	82.50	1
SMCJ12A	SMCJ12CA	12	13.30	15.30	1	19.90	75.40	1
SMCJ13A	SMCJ13CA	13	14.40	16.50	1	21.50	69.80	1
SMCJ14A	SMCJ14CA	14	15.60	17.90	1	23.20	64.70	1
SMCJ15A	SMCJ15CA	15	16.70	19.20	1	24.40	61.50	1
SMCJ16A	SMCJ16CA	16	17.80	20.50	1	26.00	57.70	1
SMCJ17A	SMCJ17CA	17	18.90	21.70	1	27.60	54.40	1
SMCJ18A	SMCJ18CA	18	20.00	23.30	1	29.20	51.40	1
SMCJ20A	SMCJ20CA	20	22.20	25.50	1	32.40	46.30	1
SMCJ22A	SMCJ22CA	22	24.40	28.00	1	35.50	42.30	1
SMCJ24A	SMCJ24CA	24	26.70	30.70	1	38.90	38.60	1
SMCJ26A	SMCJ26CA	26	28.90	33.20	1	42.10	35.70	1
SMCJ28A	SMCJ28CA	28	31.10	35.80	1	45.20	33.10	1
SMCJ30A	SMCJ30CA	30	33.30	38.30	1	48.40	31.00	1
SMCJ33A	SMCJ33CA	33	36.70	42.20	1	53.30	28.20	1
SMCJ36A	SMCJ36CA	36	40.00	46.00	1	58.10	25.90	1
SMCJ40A	SMCJ40CA	40	44.40	51.10	1	64.50	23.30	1
SMCJ43A	SMCJ43CA	43	47.80	54.90	1	69.40	21.70	1
SMCJ45A	SMCJ45CA	45	50.00	57.50	1	72.70	20.60	1
SMCJ48A	SMCJ48CA	48	53.30	61.30	1	77.40	19.40	1
SMCJ51A	SMCJ51CA	51	56.70	65.20	1	82.40	18.20	1
SMCJ54A	SMCJ54CA	54	60.00	69.00	1	87.10	17.30	1
SMCJ58A	SMCJ58CA	58	64.40	74.10	1	93.60	16.10	1
SMCJ60A	SMCJ60CA	60	66.70	76.70	1	96.80	15.50	1
SMCJ64A	SMCJ64CA	64	71.10	81.80	1	103.00	14.60	1
SMCJ70A	SMCJ70CA	70	77.80	89.50	1	113.00	13.30	1
SMCJ75A	SMCJ75CA	75	83.30	95.80	1	121.00	12.40	1
SMCJ78A	SMCJ78CA	78	86.70	99.70	1	126.00	11.90	1
SMCJ85A	SMCJ85CA	85	94.40	108.20	1	137.00	11.00	1
SMCJ90A	SMCJ90CA	90	100.00	115.50	1	146.00	10.30	1
SMCJ100A	SMCJ100CA	100	111.00	128.00	1	162.00	9.30	1
SMCJ110A	SMCJ110CA	110	122.00	140.50	1	177.00	8.50	1
SMCJ120A	SMCJ120CA	120	133.00	153.00	1	193.00	7.80	1
SMCJ130A	SMCJ130CA	130	144.00	165.50	1	209.00	7.20	1
SMCJ150A	SMCJ150CA	150	167.00	192.50	1	243.00	6.20	1
SMCJ160A	SMCJ160CA	160	178.00	205.00	1	259.00	5.80	1
SMCJ170A	SMCJ170CA	170	189.00	217.50	1	275.00	5.50	1
SMCJ180A	SMCJ180CA	180	201.00	230.40	1	292.00	5.10	1
SMCJ190A	SMCJ190CA	190	209.00	243.20	1	308.00	4.80	1
SMCJ200A	SMCJ200CA	200	224.00	256.00	1	324.00	4.60	1
SMCJ210A	SMCJ210CA	210	231.00	268.80	1	340.00	4.40	1
SMCJ220A	SMCJ220CA	220	246.00	281.60	1	356.00	4.20	1
SMCJ250A	SMCJ250CA	250	279.00	309.00	1	405.00	3.70	1
SMCJ300A	SMCJ300CA	300	335.00	371.00	1	486.00	3.10	1
SMCJ350A	SMCJ350CA	350	391.00	432.00	1	567.00	2.50	1
SMCJ400A	SMCJ400CA	400	447.00	494.00	1	648.00	2.30	1
SMCJ440A	SMCJ440CA	440	492.00	543.00	1	713.00	2.10	1
