产品
|
 |
产品特征：
|
1、依據(tp=8/20μs)線路，峰值脈衝功率為350W
|
2、保護一個I/O線(雙向)
|
3、低鉗位電壓
|
4、工作電壓：3V,5V,8V,12V,15V,24V、36V
|
5、低漏電流
|
6、IEC61000-4-2(ESD)±15kV(空氣),±8kV(接觸)
|
7、IEC61000-4-4(EFT)40A(5/50ηs)
|
|
|
| |
| |
|

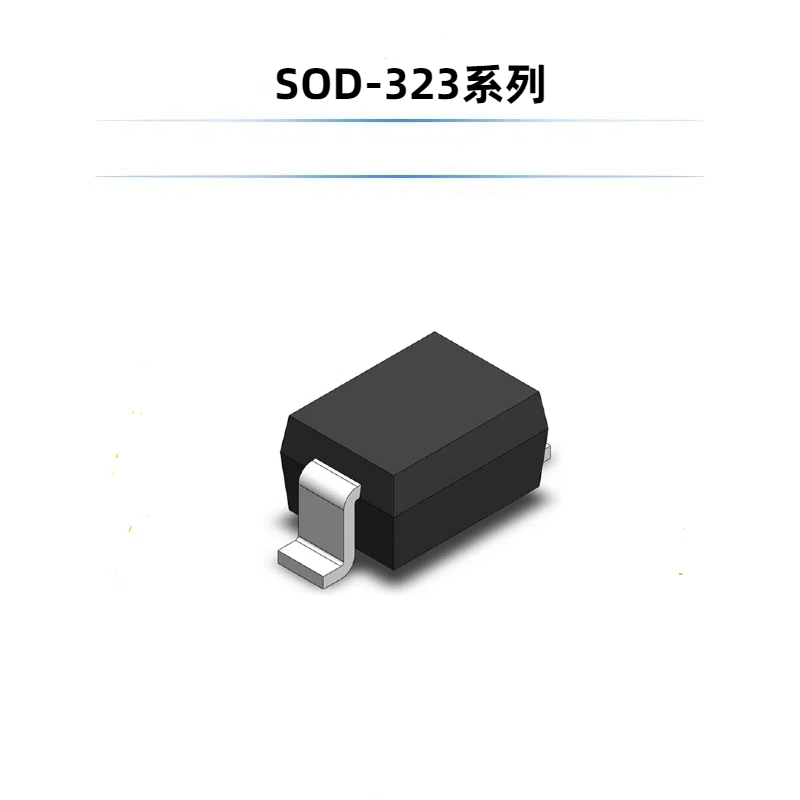

封装类型 |
VRWM
Max.
(V) |
VBR
Min.
(V) |
Vc
@1A
（V） |
IPP
Max.
(A) |
CJ@
1MHZ
(PF) |
IR@VRWM
Max.
(uA) |
Protectable
Lines |
AEC-Q101 |
ESD323-36LC |
SOD-323 |
36.0 |
40.0 |
60.0 |
4.0 |
1.0 |
1.0 |
1 |
Yes |
|
SOD-323 |
24.0 |
26.7 |
43.0 |
4.5 |
1.0 |
1.0 |
1 |
Yes |
ESD323-18LC |
SOD-323 |
18.0 |
19.0 |
27.0 |
5.0 |
1.0 |
1.0 |
1 |
Yes |
ESD323-15LC |
SOD-323 |
15.0 |
16.7 |
24.0 |
6.0 |
1.0 |
1.0 |
1 |
Yes |
ESD323-12LC |
SOD-323 |
12.0 |
13.3 |
19.0 |
7.0 |
1.0 |
1.0 |
1 |
Yes |
ESD323-08LC |
SOD-323 |
8.0 |
8.5 |
13.4 |
12.0 |
1.0 |
1.0 |
1 |
Yes |
ESD323-05LC |
SOD-323 |
5.0 |
6.0 |
9.8 |
14.0 |
1.0 |
1.0 |
1 |
Yes |
ESD323-3.3LC |
SOD-323 |
3.3 |
3.5 |
6.3 |
19.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC36CI |
SOD-323 |
36.0 |
40.0 |
60.0 |
4.0 |
1.0 |
1.0 |
1 |
Yes |
|
SOD-323 |
24.0 |
26.7 |
43.0 |
4.5 |
1.0 |
1.0 |
1 |
Yes |
GBLC18CI |
SOD-323 |
18.0 |
19.0 |
27.0 |
5.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC15CI |
SOD-323 |
15.0 |
16.7 |
24.0 |
6.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC12CI |
SOD-323 |
12.0 |
13.3 |
19.0 |
7.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC08CI |
SOD-323 |
8.0 |
8.5 |
13.4 |
12.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC05CI |
SOD-323 |
5.0 |
6.0 |
9.8 |
14.0 |
1.0 |
1.0 |
1 |
Yes |
GBLC03CI |
SOD-323 |
3.3 |
3.5 |
6.3 |
19.0 |
1.0 |
1.0 |
1 |
Yes |
YESD48C |
SOD-323 |
48.0 |
50.0 |
65.0 |
3.0 |
25.0 |
1.0 |
1 |
Yes |
YESD36C |
SOD-323 |
36.0 |
40.0 |
60.0 |
5.5 |
35.0 |
1.0 |
1 |
Yes |
YESD24C |
SOD-323 |
24.0 |
26.7 |
43.0 |
6.0 |
75.0 |
1.0 |
1 |
Yes |
YESD18C |
SOD-323 |
18.0 |
19.0 |
28.0 |
8.0 |
90.0 |
1.0 |
1 |
Yes |
YESD15C |
SOD-323 |
15.0 |
16.7 |
24.0 |
10.0 |
100 |
1.0 |
1 |
Yes |
YESD12C |
SOD-323 |
12.0 |
13.3 |
19.0 |
13.0 |
110 |
1.0 |
1 |
Yes |
YESD08C |
SOD-323 |
8.0 |
8.5 |
13.4 |
18.0 |
120 |
1.0 |
1 |
Yes |
YESD05C |
SOD-323 |
5.0 |
6.0 |
9.8 |
24.0 |
260 |
1.0 |
1 |
Yes |
YESD3.3C |
SOD-323 |
3.3 |
3.8 |
7.0 |
25.0 |
350 |
100 |
1 |
Yes |
YESD36BA |
SOD-323 |
36.0 |
40.0 |
58.0 |
4.0 |
40.0 |
1.0 |
1 |
Yes |
YESD24BA |
SOD-323 |
24.0 |
26.6 |
45.0 |
7.5 |
80.0 |
1.0 |
1 |
Yes |
YESD15BA |
SOD-323 |
15.0 |
16.7 |
25.0 |
9.0 |
90.0 |
1.0 |
1 |
Yes |
YESD12BA |
SOD-323 |
12.0 |
13.3 |
20.0 |
11.0 |
100 |
1.0 |
1 |
Yes |
YESD08BA |
SOD-323 |
8.0 |
8.5 |
16.4 |
12.8 |
200 |
3.0 |
1 |
Yes |
YESD05BA |
SOD-323 |
5.0 |
6.0 |
9.8 |
24.0 |
300 |
5.0 |
1 |
Yes |
|
SOD-323 |
3.3 |
3.8 |
7.5 |
25.0 |
350 |
100 |
1 |
Yes |
YESD0532C |
SOD-323 |
5.0 |
6.0 |
9.8 |
12.0 |
1.0 |
0.5 |
1 |
Yes |
YESD0331C |
SOD-323 |
3.0 |
3.5 |
6.2 |
25.0 |
3.0 |
0.5 |
1 |
Yes |
ESD36FB |
SOD-323 |
36.0 |
40.0 |
60.0 |
4.0 |
1.0 |
1.0 |
1 |
NO |
ESD24FB |
SOD-323 |
24.0 |
26.7 |
43.0 |
4.5 |
1.0 |
1.0 |
1 |
NO |
ESD18FB |
SOD-323 |
18.0 |
19.0 |
27.0 |
5.0 |
1.0 |
1.0 |
1 |
NO |
ESD15FB |
SOD-323 |
15.0 |
16.7 |
24.0 |
6.0 |
1.0 |
1.0 |
1 |
NO |
ESD12FB |
SOD-323 |
12.0 |
13.3 |
19.0 |
7.0 |
1.0 |
1.0 |
1 |
NO |
ESD08FB |
SOD-323 |
8.0 |
8.5 |
13.4 |
12.0 |
1.0 |
1.0 |
1 |
NO |
ESD05FB |
SOD-323 |
5.0 |
6.0 |
9.8 |
14.0 |
1.0 |
1.0 |
1 |
NO |
ESD3.3FB |
SOD-323 |
3.3 |
3.5 |
6.3 |
19.0 |
1.0 |
1.0 |
1 |
NO |
ESD12FDA |
SOD-323 |
12.0 |
13.3 |
19.0 |
7.0 |
1.2 |
1.0 |
1 |
NO |
ESD05FDA |
SOD-323 |
5.0 |
6.0 |
9.8 |
14.0 |
1.2 |
1.0 |
1 |
NO |
ESD3.3FDA |
SOD-323 |
3.3 |
4.0 |
7.0 |
15.0 |
1.2 |
40.0 |
1 |
NO |
SD48C |
SOD-323 |
48.0 |
50.0 |
65.0 |
3.0 |
25.0 |
1.0 |
1 |
NO |
SD36C |
SOD-323 |
36.0 |
40.0 |
60.0 |
5.5 |
35.0 |
1.0 |
1 |
NO |
SD24C |
SOD-323 |
24.0 |
26.7 |
43.0 |
6.0 |
75.0 |
1.0 |
1 |
NO |
SD18C |
SOD-323 |
18.0 |
19.0 |
28.0 |
8.0 |
90.0 |
1.0 |
1 |
NO |
SD15C |
SOD-323 |
15.0 |
16.7 |
24.0 |
10.0 |
100 |
1.0 |
1 |
NO |
SD12C |
SOD-323 |
12.0 |
13.3 |
19.0 |
13.0 |
110 |
1.0 |
1 |
NO |
SD08C |
SOD-323 |
8.0 |
8.5 |
13.4 |
18.0 |
120 |
1.0 |
1 |
NO |
SD05C |
SOD-323 |
5.0 |
6.0 |
9.8 |
24.0 |
260 |
1.0 |
1 |
NO |
SD03C |
SOD-323 |
3.3 |
3.8 |
7.0 |
25.0 |
350 |
100 |
1 |
NO |
|
|
|
